Fail-closed at the port
A device either proves a trusted identity or it never gets a port or a VLAN. There is no partial or fail-open admission state to slip through.
Network access control · 802.1X EAP-TLS
Nothing reaches the wire without a trusted identity.
Turn on network admission and every port becomes a checkpoint. A device holding a Skans-issued certificate is let onto its segment; anything else is rejected at the switch and never reaches the network. It runs on the appliance's native Windows NPS (RADIUS) — no extra NAC appliance to buy or run, stood up and hidden behind the console.
802.1X EAP-TLS
Only a trusted certificate opens the port.
Admission is decided by cryptography, not a password or an allow-list you maintain by hand. A device presents the certificate Skans issued it; NPS runs EAP-TLS and checks the chain back to your enclave's own Root CA; a valid identity gets an Access-Accept and its port opens, while a missing or untrusted certificate gets an Access-Reject and the port stays shut. There is no partial state and no fail-open — a device either proves a trusted identity or it stays off the wire.
- Runs on native Windows NPS — the installer stands up NPS, AD CS and AD DS / GPO together and hides all three behind the console. There is no separate NAC appliance to license or operate.
- Chain-trust is the always-on gate — a certificate that doesn't chain to your Skans Root CA is rejected. The trusted store and EAP-TLS policy are set up for you at install.
- Every decision is visible — the console surfaces live admissions with accept / reject counts, the EAP type, the account, and which switch sent them (NPS security events 6272 and 6273).
- No hand-authored policy — the Setup Wizard turns admission on from golden-config defaults, bound to the appliance's own server certificate. There is no operator CLI for it and none is needed.
Meet the gear where it is
Not every device can hold a certificate. We plan for that.

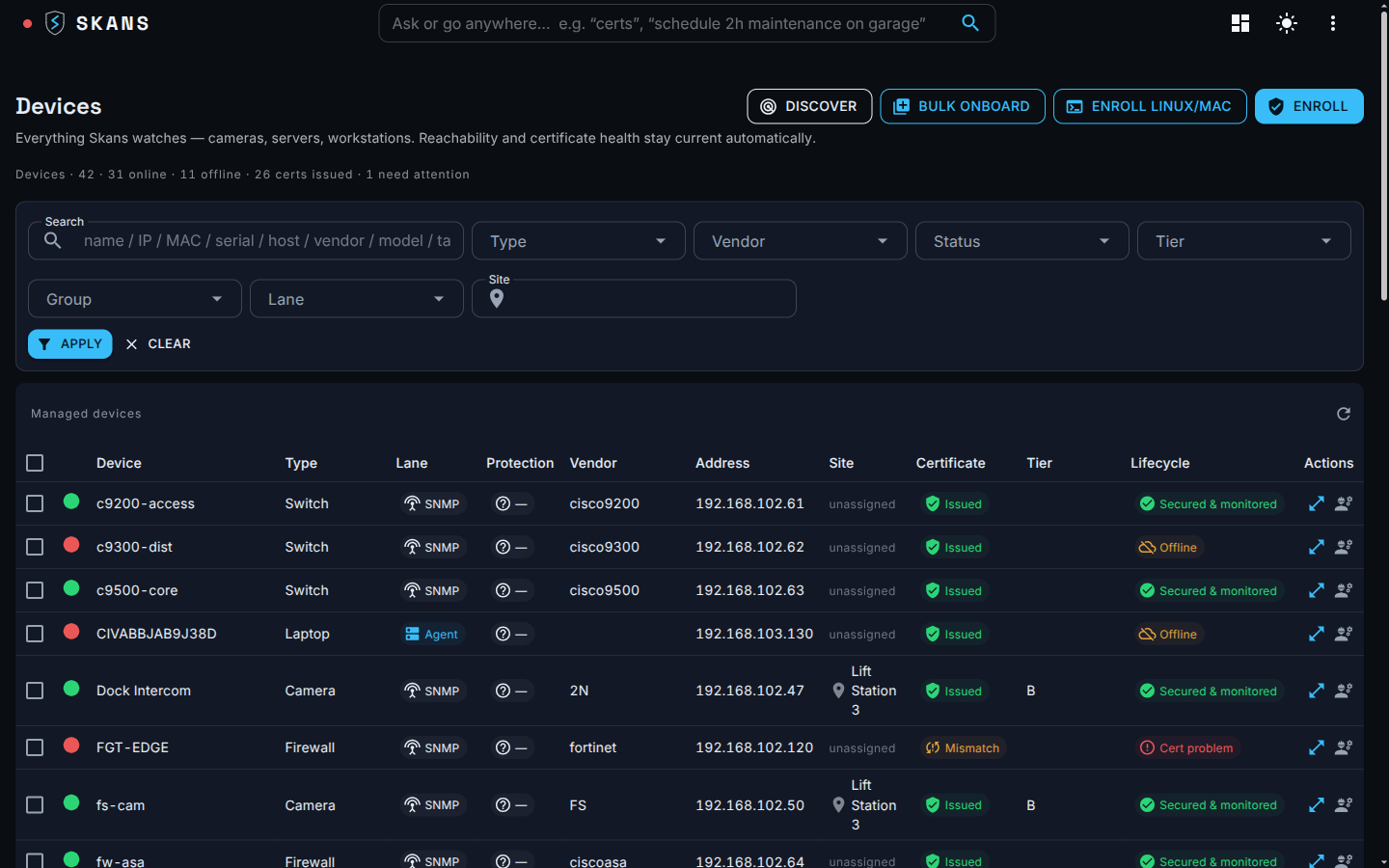

Mixed-vintage estates are the norm — a new camera next to a fifteen-year-old PLC. Skans sorts every device into a capability tier and applies the strongest control it can actually support, rather than pretending a weak device is admitted.
- Tier A — cert-capable — full 802.1X EAP-TLS admission by the device's own Skans-issued certificate.
- Tier B — limited — no supplicant, but identifiable: admitted by MAC (MAB) and placed on a restricted, RADIUS-assigned dynamic VLAN using the standard Tunnel-Type / Tunnel-Medium-Type / Tunnel-Private-Group-ID attributes.
- Tier C — legacy — old PLCs, raw Modbus and BACnet MS/TP that can't hold a certificate are never faked onto the wire; they're segmented behind a protective gateway, allow-listed to only the flows they need, and monitored — NIST 800-82 compensating controls, not fake admission.
- Standards-based, lab-proven on UniFi — the validated authenticator is a UniFi Cloud Key controller; any switch or AP that speaks standard 802.1X, MAB and RADIUS dynamic VLAN works the same way.
Safe by construction
A write path that can't lock you out — and a lane that can't wedge.
Turning on admission means writing config to live switches and standing up a RADIUS service the whole site depends on. Skans is built so that path is safe by construction: staged rollout, a break-glass way back, and a service that stays honest about its own health.
Break-glass and rollback
Roll out monitor-first, segment cameras onto their own VLAN, and keep a break-glass path so admission never locks you out of your own gear. Already-admitted sessions survive a RADIUS outage — a RADIUS problem becomes a 'fix it Monday,' not a 3 a.m. lockout.
A RADIUS lane that can't fail silently

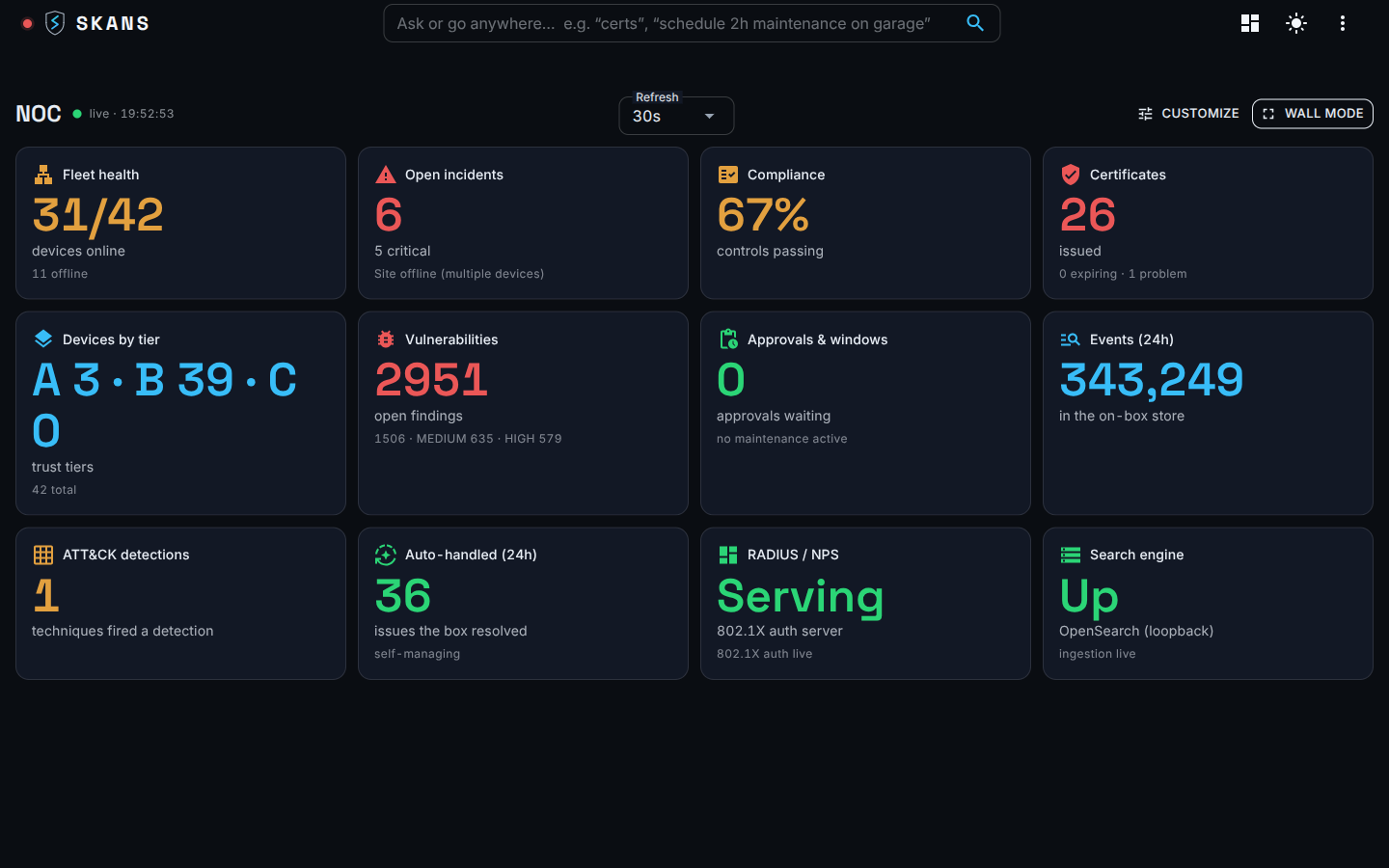

Skans functionally probes its own RADIUS every few minutes — not 'is the service running' but 'is it answering on the wire.' A silent failure raises a proactive alert, and a one-click repair brings it back safely.
Connections pinned against MITM
When Skans logs into a switch or device to configure it, the connection is pinned to that device's exact certificate and SSH host key. An impostor presents a different key, the connection fails closed, and nothing sensitive is handed over.
How it turns on
The PKI runs behind it. You press one button.
You never hand-author an EAP-TLS policy or edit NPS. The Setup Wizard binds NPS to the appliance's own server certificate and its RADIUS shared secret — held in the credential vault, never in a config file — and turns admission on from golden-config defaults. From there, bringing a site's gear online is a short, plain-language job.
- Register each switch once — on the Network page, add each switch or AP as a RADIUS client with its name, IP and shared secret. NPS won't answer for an authenticator it doesn't know.

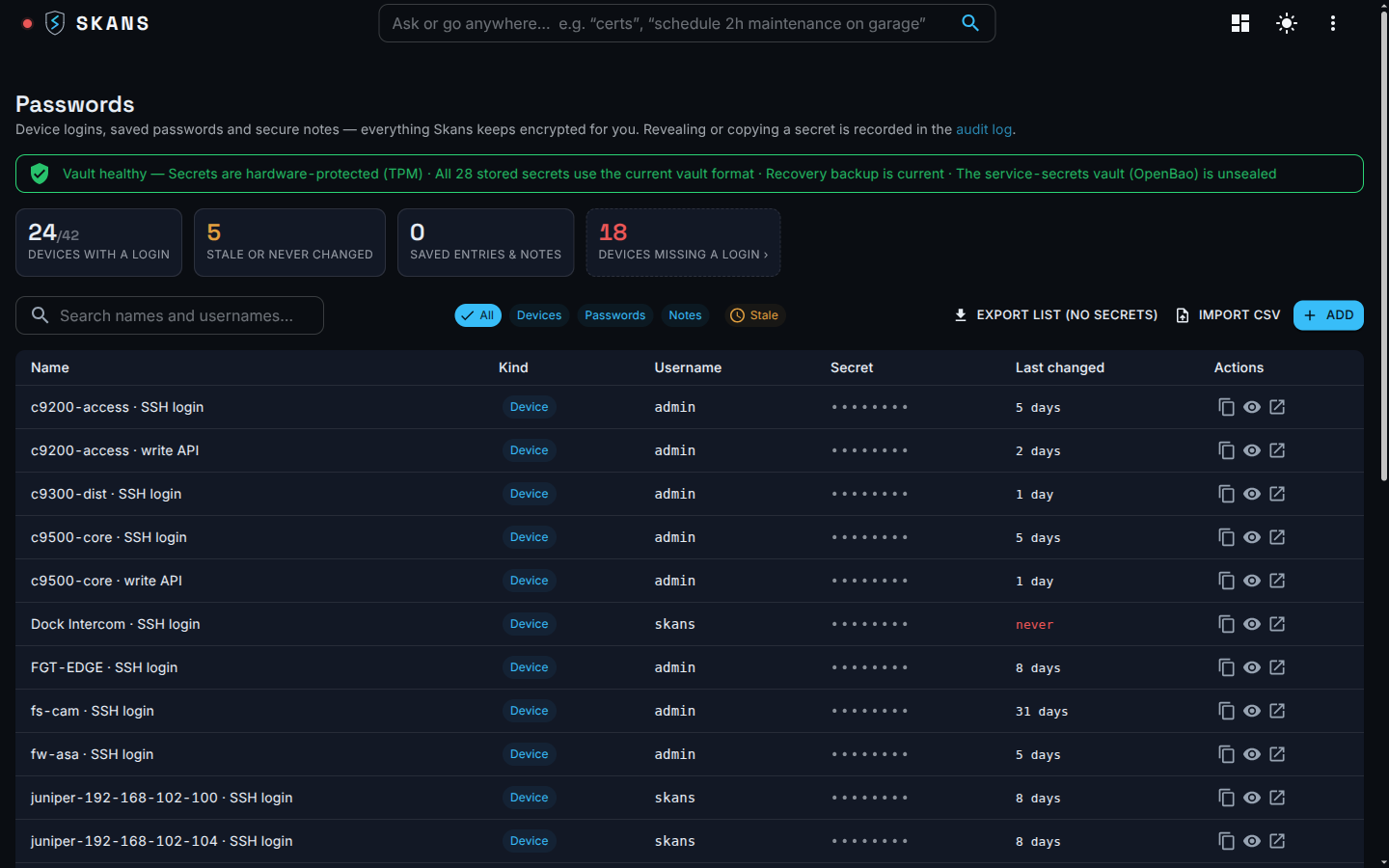

- Secrets in the vault — RADIUS shared secrets and device logins live in the TPM-hardened credential vault, encrypted, with reveal and copy audited — never in plaintext JSON.
- Watch devices come on — the console shows recent admissions in plain terms: accepted, rejected, and by which switch — enough to confirm a segment is authenticating or spot a device being turned away.
- Outcomes, not certificate chains — the operator sees results; AD, Kerberos, the CA and the RADIUS policy stay behind the wizard.
Compliance by design
The access-control evidence an assessor asks for.
Identity-gated admission is the technical enabler for the Access Control and Identification & Authentication families. Skans maps what it enforces to those controls and hands you the evidence — it supports your assessment; it doesn't certify you, and organizational controls stay yours.
- AC-3 access enforcement — 802.1X plus MAB with RADIUS-assigned VLANs gates the network to trusted devices only.
- IA-3 device authentication — every admitted device is authenticated by a certificate from your own CA, not a shared password.

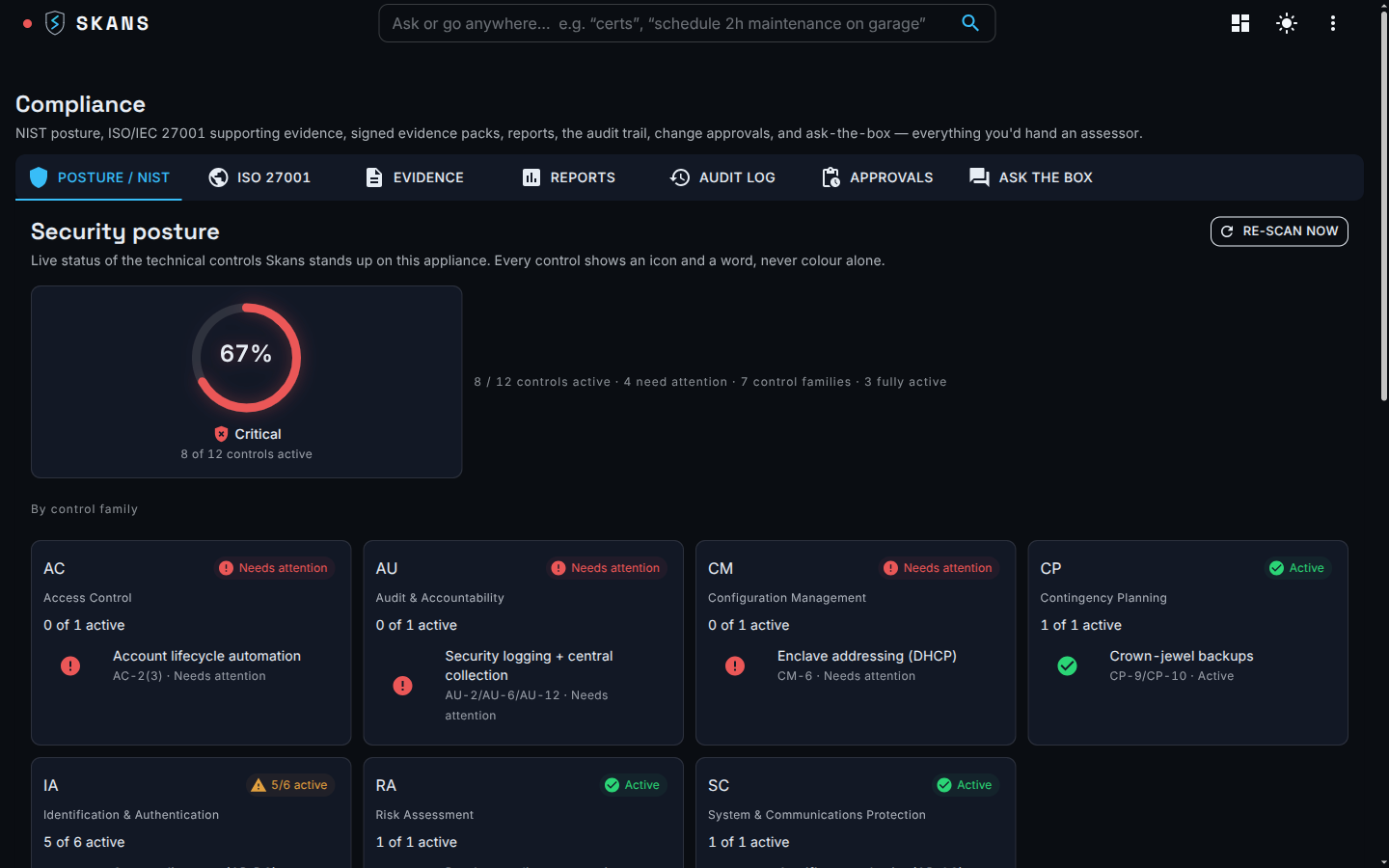

- Live posture, per family — the compliance view maps admission to NIST 800-171 / CMMC control families, with an ISO 27001 crosswalk and a signed, tamper-evident evidence pack you can hand over.
- Honest scope — Skans supplies the technical evidence; organizational, people and physical controls remain yours via a responsibility matrix, with any gaps tracked in a POA&M.
Talk to us
See Skans on your network.
Built for the teams running networks the cloud can't reach. Email us for a technical walkthrough — architecture, controls, and exactly how it stays offline.
